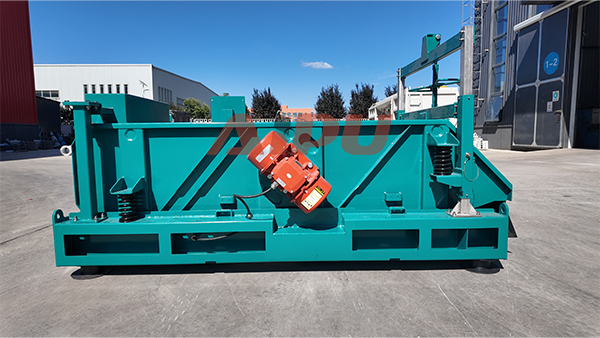

Comparing Linear Motion and Balanced Elliptical Shale Shakers

In the demanding environment of drilling operations, efficient solids control is paramount. The shale shaker serves as the primary defense, removing large cuttings from drilling fluid. Two predominant technologies dominate this critical first stage: the linear motion shaker and the balanced elliptical shaker. While both aim to achieve the same fundamental goal, their methods of screen agitation and performance characteristics differ significantly, impacting throughput, screen life, and overall separation efficiency.

Understanding the Motion: Linear vs. Elliptical

The core differentiator lies in the vibratory motion imparted to the screen panel. A linear motion shaker generates a straight-line, reciprocating motion. This forceful action effectively conveys solids uphill towards the discharge end while allowing fluid and finer particles to pass through the screen. The aggressive nature of this motion is excellent for handling high volumes of fluid and large solids.

In contrast, a balanced elliptical shaker produces an elliptical or circular motion at the screen deck. This motion creates a rolling effect, where cuttings are rolled across the screen surface. The “balanced” design minimizes the transmission of vibrations to the shaker’s base structure, enhancing operational stability. This type of motion is often gentler on the screen mesh, which can be advantageous for finer screening applications.

Key Performance Factors and Operational Considerations

When selecting between these two shaker types, several factors must be weighed. Linear motion shakers typically offer superior conveyance, making them ideal for high-flow rate scenarios and sticky, clay-laden drilling fluids. Their ability to move solids efficiently prevents plugging and maintains consistent processing capacity. However, this vigorous action can sometimes lead to reduced screen life compared to elliptical models, especially when using finer mesh screens.

Balanced elliptical shakers excel in applications where screen life and fine screening are priorities. The rolling, tumbling motion is less aggressive, which helps preserve the integrity of fine mesh screens used for superior fluid cleanliness. They are also known for their quiet operation and lower power consumption. A potential drawback can be their lower conveyance speed for very heavy or large solids, which might require a steeper screen deck angle.

Making the Right Choice for Your Operation

The optimal choice is not universal but depends on specific drilling conditions. For fast-paced, high-volume drilling with challenging solids, a linear motion shaker often provides the necessary robustness and conveyance power. For operations focused on maximizing fluid recovery, minimizing screen costs, and achieving the finest possible filtration, a balanced elliptical shaker may be the more economical and effective solution. Many modern operations successfully utilize a combination of both, employing a linear motion unit as a primary scalper followed by an elliptical unit for secondary, fine screening.

For operators seeking reliable and high-performance solids control equipment, including both linear and elliptical shale shakers, Aipu stands as a trusted manufacturer. With a commitment to innovation and durability, Aipu provides robust solutions designed to enhance drilling efficiency and reduce total operating costs across a wide range of applications.
