How to Avoid Mud Splashing on Shale Shaker Deck

Mud splashing on the shale shaker deck is a common yet problematic issue in drilling operations. This messy occurrence not only creates a hazardous work environment but also leads to significant fluid loss, potential equipment damage, and inefficient solids control. The primary culprits are often improper screen installation, incorrect flow rates, or an unsuitable feed box design. Addressing these factors is crucial for maintaining a clean, safe, and cost-effective operation. By implementing a few key strategies, you can effectively minimize or even eliminate mud splashing altogether.

Ensure Correct Screen Installation and Tension

One of the most frequent causes of mud splashing is improperly installed or tensioned screens. If the screen panels are loose, they will vibrate inconsistently with the shaker’s motion, causing mud to bounce and spray. Always follow the manufacturer’s specific guidelines for screen installation. Ensure the tensioning system is correctly engaged, providing a uniform, drum-like tightness across the entire screen surface. A properly tensioned screen will work in harmony with the shaker’s vibrations to convey solids smoothly off the deck without unnecessary agitation.

Optimize the Flow Rate and Weir Height

Introducing too much drilling fluid too quickly will overwhelm the shaker deck. When the feed box overflows or the fluid pool is too deep, splashing is inevitable. Monitor and adjust the flow rate to match the shaker’s capacity. Additionally, check the weir plate or dam at the end of the deck. If it is set too high, it can cause fluid to pool excessively before exiting, increasing the likelihood of splashing. Adjusting the weir to an optimal height allows for a thinner, more controlled fluid layer that separates solids efficiently without turbulence.

Inspect and Maintain the Feed Box and Deflector

The feed box is designed to distribute drilling fluid evenly across the width of the screen. Over time, it can wear out or become clogged, leading to an uneven flow pattern that directly contributes to splashing. Regularly inspect the feed box and its internal deflector for signs of erosion or blockage. A worn or damaged deflector will not cushion the incoming flow, resulting in a high-impact “splash down” onto the screens. Replacing or repairing these components ensures a smooth, controlled distribution of fluid.

Utilize Anti-Splash Mats and Spray Guards

For persistent issues, physical barriers can offer a simple and effective solution. Anti-splash mats placed on the deck can help absorb the energy of falling fluid droplets, reducing bounce-back. Similarly, transparent spray guards or shields installed around the shaker can contain any residual mist or splashes, protecting personnel and nearby equipment. While these are secondary measures, they are highly effective when combined with the primary corrective actions of proper screen tension and flow control.

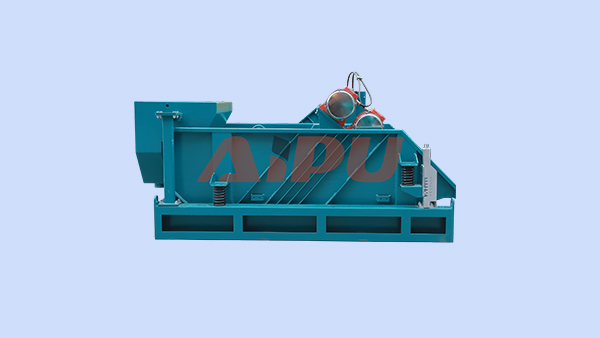

For operators seeking reliable and high-performance solids control equipment, Aipu offers a robust range of solutions. Their shale shakers are engineered with advanced vibration technology and precision-designed feed systems to minimize common operational challenges like mud splashing, ensuring maximum solids removal efficiency and a cleaner, safer drilling site.
