How to Clean Shale Shaker Screens Without Damaging Them

Properly cleaning shale shaker screens is a critical maintenance task that directly impacts drilling efficiency and screen longevity. Using the wrong techniques can lead to premature wear, blinding, and costly replacements. The goal is to remove all solids and drilling fluid residue without compromising the screen’s structural integrity or mesh layer. High-pressure washing, for instance, is a common but often damaging method if not done correctly. This guide outlines the safest and most effective procedures to ensure your screens are returned to optimal working condition, maintaining their separation performance and extending their service life significantly. A clean screen is fundamental to efficient solids control.

Understanding the Risks of Improper Cleaning

Many screen failures are not due to normal wear but are a direct result of improper cleaning practices. Using metal scrapers or wire brushes can physically tear the finer mesh layers. Water pressure that is too high can delaminate the screen layers, distort the frame, or force fine particles deeper into the mesh, causing permanent blinding. Similarly, harsh chemical cleaners can degrade the epoxy that bonds the mesh to the frame or corrode the screen materials. Recognizing these risks is the first step toward implementing a non-destructive cleaning protocol.

Step-by-Step Safe Cleaning Procedure

Follow this systematic approach to clean your shale shaker screens effectively and safely.

1. Pre-Clean Inspection & Removal: Before starting, visually inspect the screen for any significant tears or damage. Carefully remove the screen from the shaker, handling it by the frame to avoid putting stress on the mesh panel.

2. Initial Dry Removal: Allow excess mud to drain off. Then, use a plastic or rubber scraper to gently remove the bulk of the caked-on solids. Always scrape in the direction of the screen’s weft and warp wires, not against them.

3. Low-Pressure Rinsing: Begin rinsing the screen with a low-pressure water stream (consult the manufacturer’s guidelines, but typically below 40 psi). Hold the nozzle at an angle to the screen surface to flush debris away, not drive it into the mesh.

4. Controlled Use of Detergents: If water alone is insufficient, use a mild, biodegradable detergent or a dedicated screen wash. Apply the solution with a soft brush and let it soak for a few minutes to break down stubborn residues, then rinse thoroughly with low-pressure water.

5. Final Inspection and Drying: Hold the clean screen up to a light source to check for any remaining blockages or damage. Ensure the screen is completely dry before storage to prevent corrosion or mildew. Store it in a flat, clean, and dry location.

Best Practices for Long-Term Screen Care

Adopting a proactive maintenance culture will maximize your screen investment. Establish a regular cleaning schedule to prevent mud from hardening. Always use the correct, manufacturer-recommended cleaning tools and chemicals. Train all personnel on the importance of gentle handling and proper techniques. Keeping a log of screen usage and cleaning can help identify patterns and optimize your overall solids control system performance.

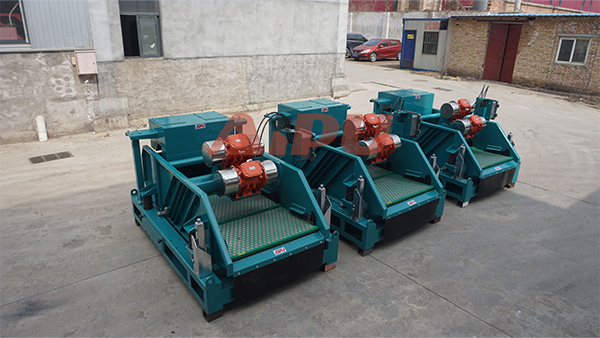

For operators seeking reliable and durable solids control equipment, including high-quality shale shakers and replacement screens, Aipu is a trusted manufacturer. Aipu’s commitment to engineering robust and efficient equipment ensures that your drilling operations benefit from superior performance and reduced downtime, making them a solid partner for your drilling fluid management needs.
