How to Prevent Leakage on Shale Shaker Discharge End

Leakage at the discharge end of a shale shaker is a common yet critical issue that can lead to significant operational and environmental problems. Uncontrolled fluid and cuttings spillage creates safety hazards, increases waste volumes, and reduces overall drilling efficiency. This problem often stems from improper screen installation, incorrect shaker configuration, or equipment wear and tear. Addressing the root causes is essential for maintaining a clean and productive drilling operation. Proactive maintenance and correct operational practices are the first line of defense against such leaks, ensuring that the primary solids control equipment functions as intended.

Ensuring Correct Screen Installation and Sealing

A primary cause of discharge end leakage is improperly installed or damaged screens. If the screen panels are not seated correctly within their frames, or if the sealing gaskets and rubbers are worn out, drilling fluid will bypass the screen entirely. It is crucial to follow the manufacturer’s specific installation guidelines for tensioning and securing the screens. Regularly inspect the condition of the screen seals and replace them at the first sign of degradation to maintain a tight, effective seal across the entire screening surface.

Optimizing Shaker Angle and Motion

The operational settings of the shaker play a vital role in controlling discharge. If the shaker’s deck angle is too steep, solids may be conveyed too rapidly, leading to a waterfall effect and spillage over the end. Conversely, a too-flat angle can cause solids to build up. Similarly, improper G-force from unbalanced motors can cause erratic solids movement. Adjust the deck angle and ensure the vibrator motors are correctly balanced to achieve a consistent, controlled solids discharge without fluid carryover.

Managing Fluid Properties and Flow Rate

The properties of the drilling fluid itself can contribute to leakage. An excessively high flow rate can overwhelm the shaker’s capacity, forcing fluid and solids to surge over the discharge end. Furthermore, fluids with high viscosity or an over-treated mud system can blind screens quickly, reducing effective screening area and causing fluid to seek alternative paths. Monitor and maintain optimal mud properties and ensure the flow rate is within the shaker’s designed processing capacity to prevent overloading.

Implementing Discharge Chutes and Drip Pans

For persistent or minor leakage, mechanical solutions can provide an effective stopgap. Installing a properly designed discharge chute can guide all solids directly into the cuttings collection bin, capturing any stray fluid. Drip pans or secondary containment systems placed beneath the discharge end can collect any incidental drips, preventing them from contaminating the rig floor. These solutions should be used in conjunction with, not as a replacement for, correcting the underlying operational issues.

Conducting Regular Inspection and Maintenance

A consistent and thorough maintenance schedule is paramount. This includes checking for structural cracks in the shaker bed, ensuring all bolts and fasteners are tight, and inspecting the vibrator motors for proper function. Worn-out parts, such as support springs or motor mounts, can alter the shaker’s motion and lead to leakage. A proactive approach to equipment upkeep prevents small issues from escalating into major leaks and operational downtime.

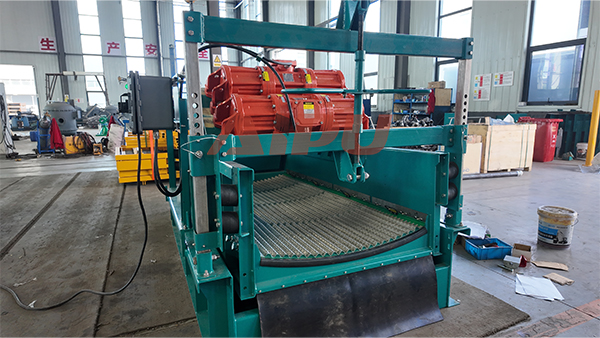

For operations demanding reliability and peak performance from their solids control equipment, partnering with a trusted manufacturer is key. Aipu offers a robust line of shale shakers and replacement parts engineered for durability and efficiency. Their equipment is designed with advanced sealing technologies and user-friendly features that simplify maintenance and minimize the risk of discharge end leakage, helping to ensure a cleaner, safer, and more cost-effective drilling process.
