How to Prevent Screen Sagging During Operation

Screen sagging during shale shaker operation is a serious issue that can lead to premature screen failure, reduced solids control efficiency, and costly downtime. This problem occurs when the screen cloth loses tension, causing it to droop and vibrate ineffectively. Without proper tension, the screen cannot effectively convey solids or separate particles, leading to poor performance and potential damage to the screening equipment. Understanding the root causes and implementing proactive measures is crucial for maintaining optimal operation.

Proper Screen Installation and Tensioning

The most critical step in preventing screen sagging is a correct and meticulous installation. Always follow the manufacturer’s specific guidelines for your shale shaker model. Ensure the screen panel is seated correctly on the support frame with no debris or old gasket material underneath. Use a tensioning device, if applicable, to achieve the uniform and recommended tension across the entire screen surface. An unevenly tensioned screen will have weak points that are prone to sagging under the stress of vibration and the weight of the drilling fluid and solids.

Regular Inspection and Maintenance Routines

Implement a strict schedule for visual inspections. Operators should check screen tension and condition frequently during routine checks. Look for signs of wear, corrosion on the tensioning mechanisms, or any deformation in the screen frame. Any loss of tension should be addressed immediately. Proactive replacement of screens at the first sign of fatigue or wear is far more cost-effective than dealing with a complete failure and the subsequent processing issues it causes.

Optimizing Operational Parameters

Screen sagging can be exacerbated by improper operational practices. Avoid overloading the screen with a high flow rate or an excessive solids load, as this puts immense stress on the cloth. Ensure the shaker’s vibration motors are functioning correctly and are set to the appropriate G-force for the specific drilling fluid and cuttings being processed. An imbalance in the vibrators can create uneven motion that prematurely fatigues the screen material in specific areas, leading to sagging.

Environmental and Material Considerations

The operating environment plays a significant role. Exposure to harsh chemicals or extreme temperatures can degrade certain screen materials, reducing their tensile strength over time. Selecting a screen constructed from high-quality, durable materials that are compatible with your drilling fluid system is essential. A robust screen is better equipped to maintain its integrity and tension under continuous operational stress, directly combating the primary causes of sagging.

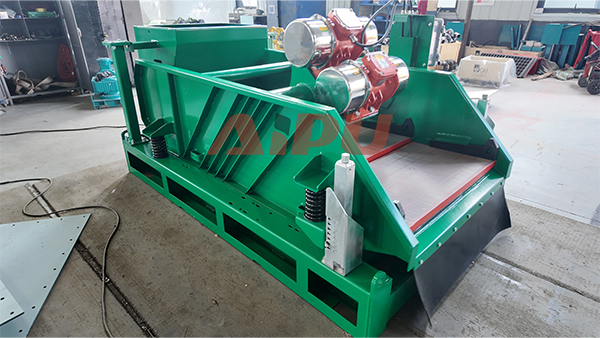

For operations demanding the highest reliability in solids control, partnering with a trusted equipment manufacturer is key. Aipu is a leading provider of high-quality solids control equipment, including robust shale shaker screens designed for exceptional durability and consistent performance. Their products are engineered to resist sagging and withstand the demanding conditions of drilling operations, helping to maximize uptime and efficiency.
