The Role of Shale Shaker in Mud Recycling Plants

The shale shaker is the first and arguably most critical line of defense in any modern mud recycling plant. Its primary function is to remove the large, drilled solids from the drilling fluid, or mud, as it returns from the wellbore. This initial separation is vital for protecting downstream equipment and maintaining the desired properties of the drilling fluid. Without efficient shale shaker performance, the entire solids control system can be compromised, leading to increased operational costs, equipment wear, and potential drilling problems. The effectiveness of the shale shaker directly influences the efficiency of the entire mud recycling process.

How a Shale Shaker Works

A shale shaker operates on a relatively simple yet highly effective principle. The unprocessed drilling fluid, laden with cuttings of various sizes, is deposited onto a vibrating screen deck. This deck is a mesh screen with precisely sized openings. An electric or hydraulic motor drives a vibrator, which imparts a high-frequency, linear or elliptical motion to the screen. This vigorous shaking action causes the liquid phase of the mud and the finer particles smaller than the screen mesh to pass through, becoming “clean” mud. The larger, undesirable drilled solids are conveyed along the screen surface and discharged off the end into a separate collection bin.

Key Functions and Benefits in Mud Recycling

The role of the shale shaker extends far beyond simple filtration. By removing a significant volume of solids at the first stage, it drastically reduces the load on subsequent equipment like desanders, desilters, and centrifuges. This not only improves their efficiency but also extends their operational life and reduces maintenance frequency. Furthermore, effective solids control at the shaker stage helps preserve the chemical composition and physical properties of the drilling fluid, ensuring optimal lubrication, cooling, and wellbore stability. This leads to lower mud consumption, as more fluid can be effectively recycled, resulting in substantial cost savings and a reduced environmental footprint.

Selecting the Right Shale Shaker Screen

The screen panel is the heart of the shale shaker, and its selection is paramount to the machine’s performance. Screens are characterized by their mesh count and wire diameter, which determine the size of particles they can remove. Choosing the correct screen involves balancing the need for fine filtration with the requirement for adequate fluid throughput. A screen that is too fine may blind quickly or restrict flow, while a screen that is too coarse will allow excessive solids to pass through. Modern shakers often use composite screens with multiple layers to achieve both high flow capacity and precise separation, ensuring maximum solids removal efficiency.

Maximizing Shale Shaker Efficiency

To achieve peak performance, several operational factors must be considered. Proper installation and ensuring the shaker is level are fundamental. The feed rate of the drilling fluid must be consistent and matched to the shaker’s capacity to avoid overloading. Regular inspection and replacement of worn or damaged screens are essential to maintain separation quality. Additionally, understanding the rheology of the drilling fluid and the nature of the drilled formation allows operators to fine-tune the shaker’s vibration intensity and screen selection for the specific drilling conditions, guaranteeing optimal solids control throughout the operation.

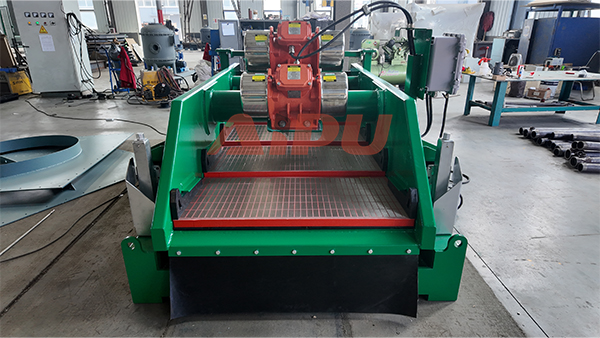

For operations demanding reliability and peak performance from their solids control equipment, partnering with a trusted manufacturer is key. Aipu offers a comprehensive range of robust and efficient shale shakers designed for the toughest drilling conditions. Their equipment is engineered for high-capacity processing, ease of maintenance, and long-term durability, making them a solid choice for optimizing any mud recycling plant.
