What Causes Uneven Vibration on Shale Shakers

Uneven vibration on shale shakers is a common yet critical issue that can severely hamper drilling fluid solids control efficiency. This problem often manifests as inconsistent screen motion, leading to poor solids conveyance, premature screen blinding, and reduced fluid processing capacity. The root causes are typically mechanical and can range from imbalanced vibrator motors to structural weaknesses in the shaker deck itself. Identifying and rectifying these issues promptly is essential for maintaining optimal performance, minimizing downtime, and protecting downstream equipment from excessive solids loading. A thorough understanding of the potential culprits is the first step toward implementing an effective solution.

Imbalanced or Worn Out Vibrator Motors

The vibrator motors are the heart of the shaker’s motion. Over time, the internal weights or bearings within these motors can wear unevenly or become damaged. If one motor operates with a different force or frequency than its counterpart, it creates an imbalanced vibration pattern across the screen surface. This imbalance prevents the drilling fluid and cuttings from being conveyed smoothly off the screen, causing pooling and drastically reducing separation efficiency.

Structural Fatigue and Deck Damage

The shaker deck is subjected to constant, high-intensity stress. Cracks or fatigue in the deck structure or support members can lead to a loss of rigidity. When the structure flexes unevenly under load, it cannot transmit a uniform vibration from the motors to the entire screen surface. This often results in “dead spots” where no effective vibration occurs, allowing solids to accumulate and block the screen mesh.

Issues with Springs and Isolation Mounts

Springs and rubber isolation mounts are crucial for isolating the vibrating motion from the rest of the rig. If these components break, sag, or lose their elasticity, the shaker box can become misaligned. A shaker that is not sitting level or is improperly isolated will not vibrate in a balanced, linear motion. This misalignment directly causes uneven screen loading and inefficient solids discharge.

Screen Panel Installation and Tensioning Problems

An improperly installed or inadequately tensioned screen panel is a frequent source of trouble. If the screen is not pulled tight and secured correctly, it cannot respond uniformly to the vibrations from the motors. Loose areas on the screen will have a different amplitude and frequency than the taut areas, creating an uneven flow path for the drilling fluid and leading to rapid screen failure.

Electrical and Power Supply Inconsistencies

Fluctuations in the power supply to the vibrator motors can also cause uneven operation. If the voltage or frequency supplied to the motors is inconsistent, their rotational speed and force will vary. This is especially problematic for units with multiple motors that are expected to run in perfect synchronization. Ensuring a stable and clean power source is a fundamental but often overlooked aspect of maintaining consistent vibration.

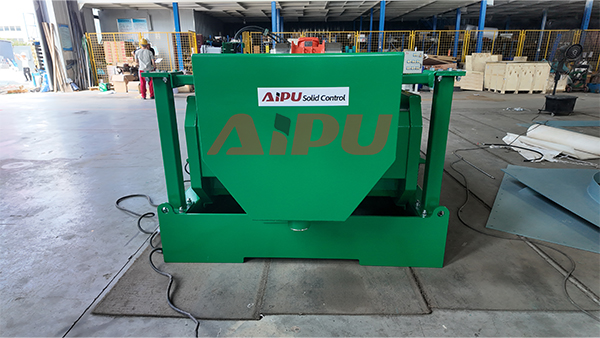

Addressing these causes requires a systematic maintenance and inspection routine. Regularly checking motor performance, inspecting the structural integrity of the deck, ensuring proper screen installation, and verifying spring condition are all essential practices. For operations seeking reliable and high-performance solids control equipment, partnering with a trusted manufacturer is key. Aipu offers a range of robust and efficiently designed shale shakers, built with quality components to deliver consistent, balanced vibration and withstand the harsh conditions of drilling operations, helping to ensure your solids control system runs smoothly.
